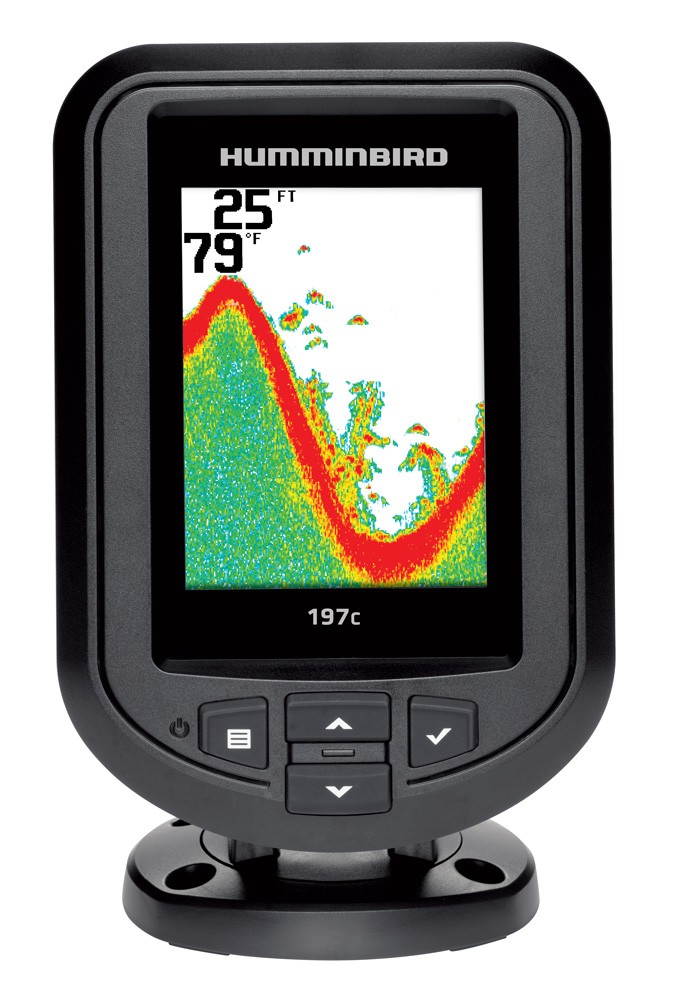

Humminbird PiranhaMAX 197C

Humminbird
In Stock
Product Code:
MPN: 409670-111608
Pre-Order:

This product has been discontinued - This product has been replaced by the following: Humminbird PiranhaMAX 197C Humminbird PiranhaMAX 197C

No Message

RRP | £87.49

£83.33 £83.33 £83.33
Success
Item successfully added to the cart.

Product Overview

  • When it comes to scouting for fish, there is no better device. Thanks to its dual beam sonar, it provides a greater search radius to locate the perfect fishing spot as it allows for a greater coverage, and so minimises time spent searching and maximises time spent fishing. This allows you to find the undiscovered and those hidden schools of fish that are tucked away in secret trenches. Thanks to an easy-to-use interface, unlocking the power of FishD+ fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match. Featuring a 256 colour 320V X 240H, 3.5" display with 1600 watts PTP power output with Dual Frequency sonar.  The design also allows drop-in replacement for competitive in-dash models.

Dual Frequency Sonar

  • The dual beam sonar provides two different frequencies with which to use, the 455 KHz frequency covers a wide area making locating potential catches easier, but also does not provide enough detail to tell you what it is, which is where the 200 KHz comes in. It has a lower overall area than the 455 KHz but has greater accuracy and so a more detailed image is created so much so that you could almost distinguish between species.

Specification

  • Display Size - Diagonal:3.5"
  • Display Pixel Matrix:240H X 320V
  • Display Type: Colour TFT
  • Display Colours Grayscale:256 Colours
  • Sonar Standard: Dual Beam
  • Standard Sonar Coverage:28° & 16° @ -10db
  • Standard Sonar Frequency:200/455 kHz
  • Target Separation:2.5"
  • Power Output RMS:300 Watts
  • Power Output Peak to Peak:2400 Watts
  • Depth Capability:600 ft.
  • Temperature: Built In Transducer
  • Backlight: LED
  • Mounting Options: Tilt and Swivel/Optional In-Dash Mounting Kit
  • Transducer Standard: XNT 9 28 T
  • Transducer Mounting: Transom
  • Power Input:10-20 VDC
  • Power Draw:220mA
  • Selective Fish ID+:Included
  • Hardware: MHX XNT
  • Transducer 2:XNT 9 28 T
  • Puck: XP 9 28 T
  • Trolling Motor: XTM 9 28 T
